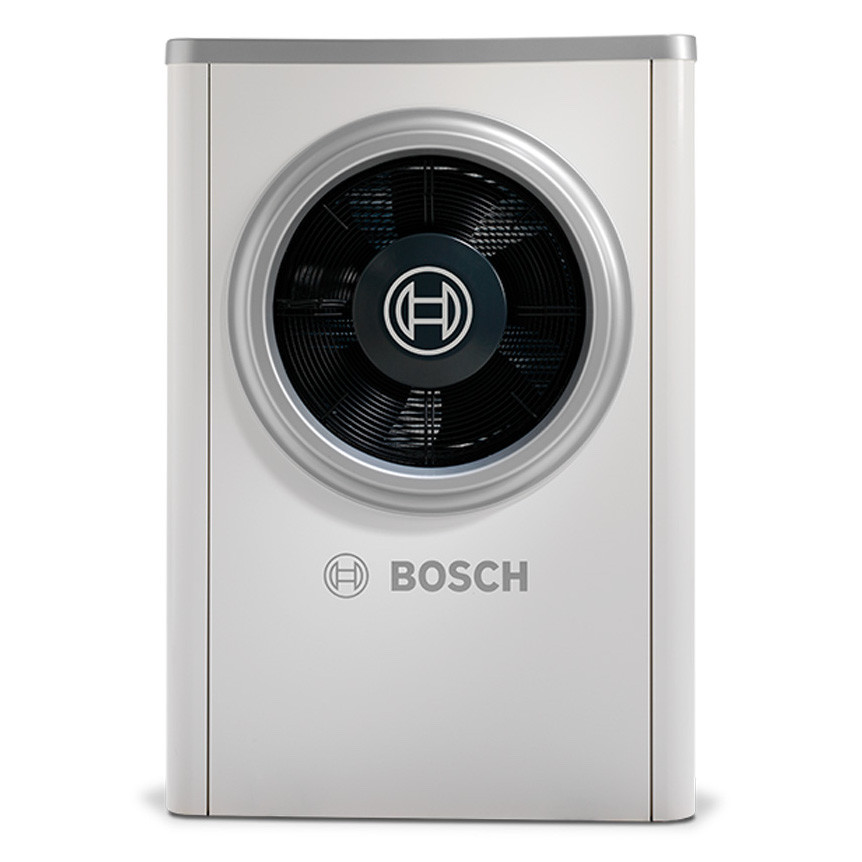

Worcester Bosch Compress 7001iAW Air Source Heat Pump

Shop Now

Worcester Bosch Compress 7001iAW Air Source Heat Pump featured image

  • Suitable for renovation (building dependent) and new build projects, the 7001iAW air to water heat pump utilise high efficiency, low-carbon technology to deliver all the benefits of using ambient air as the primary energy source for space heating and hot water.

    Its monobloc design houses all refrigeration circuit components, including the inverter and circuit boards, keeping maintenance low.

    Pre-configured AWE indoor unit for quick and easy installation with a built in multi- functional back up electric booster for heating and hot water.

    Optional Green Storage WB heat pump range cylinders from 150 to 300 litres provide solutions for even the most demanding lifestyles.

    Features & Benefits

    • 7001iAW outputs between 5kW and 17kW
    • A+++ at 35 degrees flow for heating
    • Cooling mode from 15°C to 45°C (outside temperature) and Heating mode from -20°C to 35°C (outside temperature)
    • Low maintenance with hermetically sealed refrigeration circuit
    • No requirement for Glycol to be used
    • Drain tray and coastal protection included as standard
    • A CR10H remote room controller is available for additional user convenience and comfort
    • Optional 50 litre buffer vessel available if required



    • Energy Efficiency Class (35°C): A+++
    • Energy Efficiency Class (55°C): A++
    • Working outdoor temperature range (Heating): -20 / 35 °C
    • Compressor type: Twin rotary compressor
    • Maximum temperature of flow (heat pump only): 62°C
    • Refrigerant Type: R410A
    • Quiet Mark certified outputs: 5kW, 7kW, 9kW, 13kW & 17kW
    • Product codes: CS7001i AW 5 OR-S / CS7001i AW 7 OR-S / CS7001i AW 9 OR-S / CS7001i AW 13 OR-S / CS7001i AW 17 OR-T

    Outdoor Unit

    • Dimensions (W x H x D): 930 x 1380 x 440mm (5kW, 7kW & 9kW), 1122 x 1695 x 545mm (13kW & 17kW)
    • Weight (kg) - Outdoor Unit (Without walls and top cover): 88kg (5kW), 89kg (7kW), 96kg (9kW), 154kg (13kW & 17kW)
    • Weight (kg) - Outdoor Unit (With walls and top cover): 106kg (5kW), 107kg (7kW), 114kg (9kW), 182kg (13kW & 17kW)

    Indoor Unit

    • Weight (kg): 32kg
    • Dimensions (W x H x D): 485 x 700 x 386

  •

To learn more about how Quiet Mark certifies products and why we don't publish decibel levels, click here.
