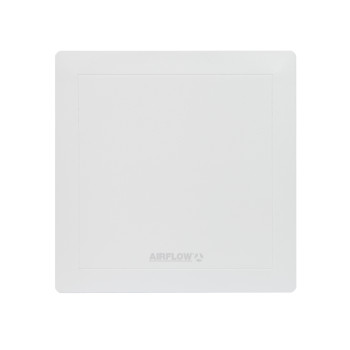

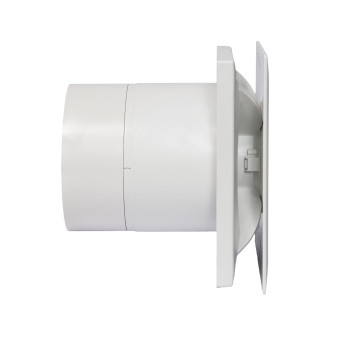

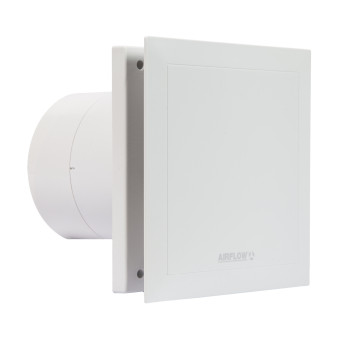

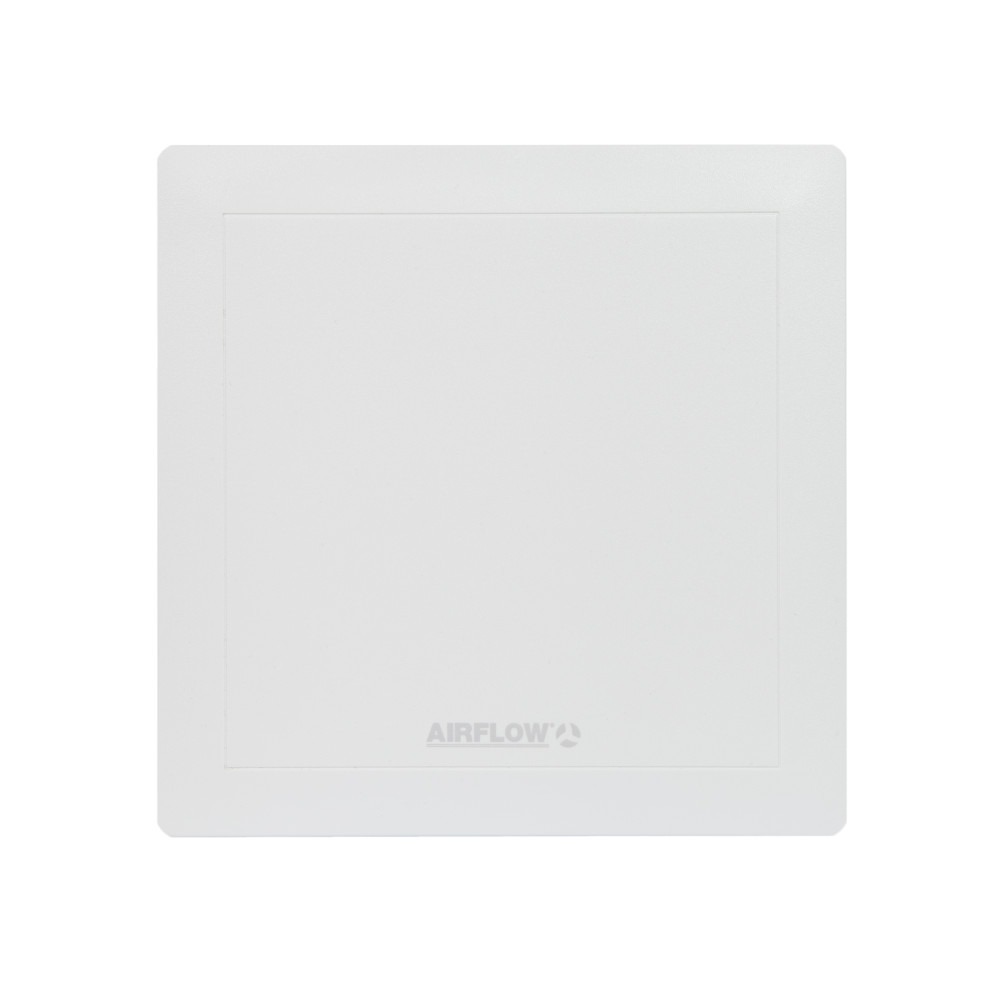

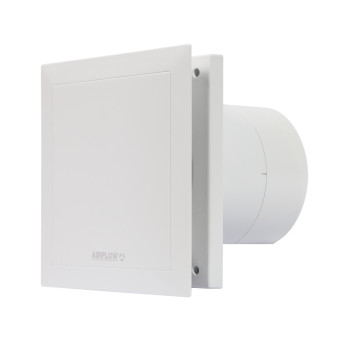

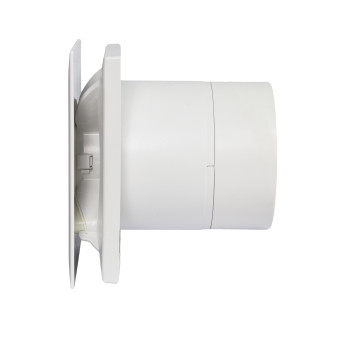

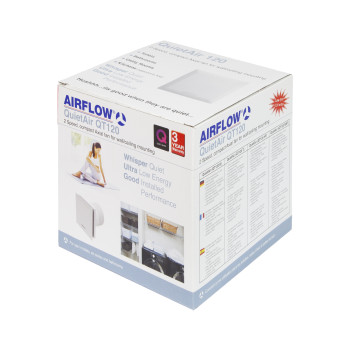

Airflow QuietAir QT 120B Extractor Fan
Shop Now
-
After the successful launch of QuietAir 100mm fan Airflow introduced a 120mm version. QuietAir QT120B combines contemporary design with powerful performance and outstanding energy efficiency. Suitable for toilets, en-suites, bathrooms, small rooms, utility rooms and kitchen (adjacent to hob).
-
- Delay start for two minutes avoids unnecessary use (especially at night), and saves energy
- Power consumption from only 10 watts
- Two speed options, 150 m3/hr and 170 m3/hr
- Adjustable overrun timer
- High efficiency impeller delivers up to 120m3/hr through long lengths of rigid ducting, including 90 degree bends
- Use in wet zone 1 when protected by an RCD and installed in accordance with latest IEE wiring regulations

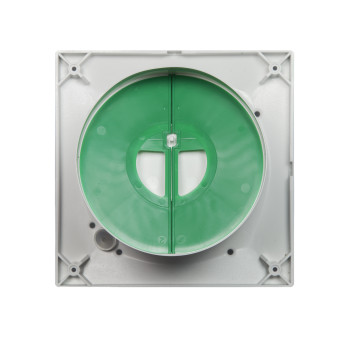

- Integral flow straightener and back draught flap
- Low specific fan power for SAP assessments
- Clip-on cover for ease of cleaning
- Complies with latest 2010 Building Regulations Approved Document F
- Airflow 150/170 m3/hr, 41.6/47.2 l/sec
- Airflow 31Pa @ 120 m3/hr, 33.3 l/sec
- Axial high efficiency impeller
- Long life ball-bearing motor with 40,000 hours life
- Wall/ceiling mounting
- Adjustable timer (minutes) 6, 10, 15, 21
- Power 10/13 watts
- Low SFP (Specific fan power) 0.24 w/l/s*
- Voltage - 230/1/50-60Hz
- Rating IP45
- Max. ambient temperature 40 degree
- Interval times, auto start (hours) 0, 8, 12, 24
